Ubiquiti

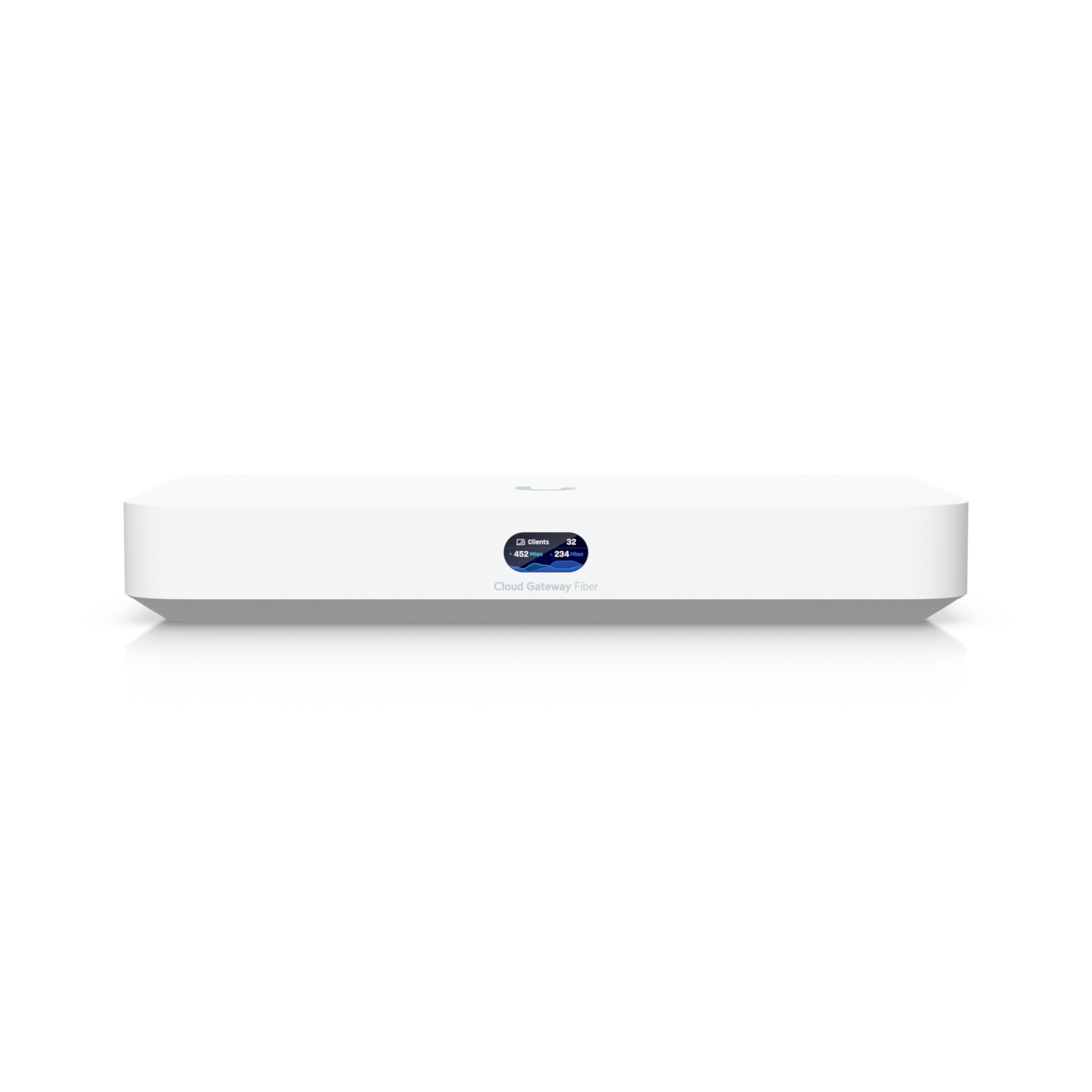

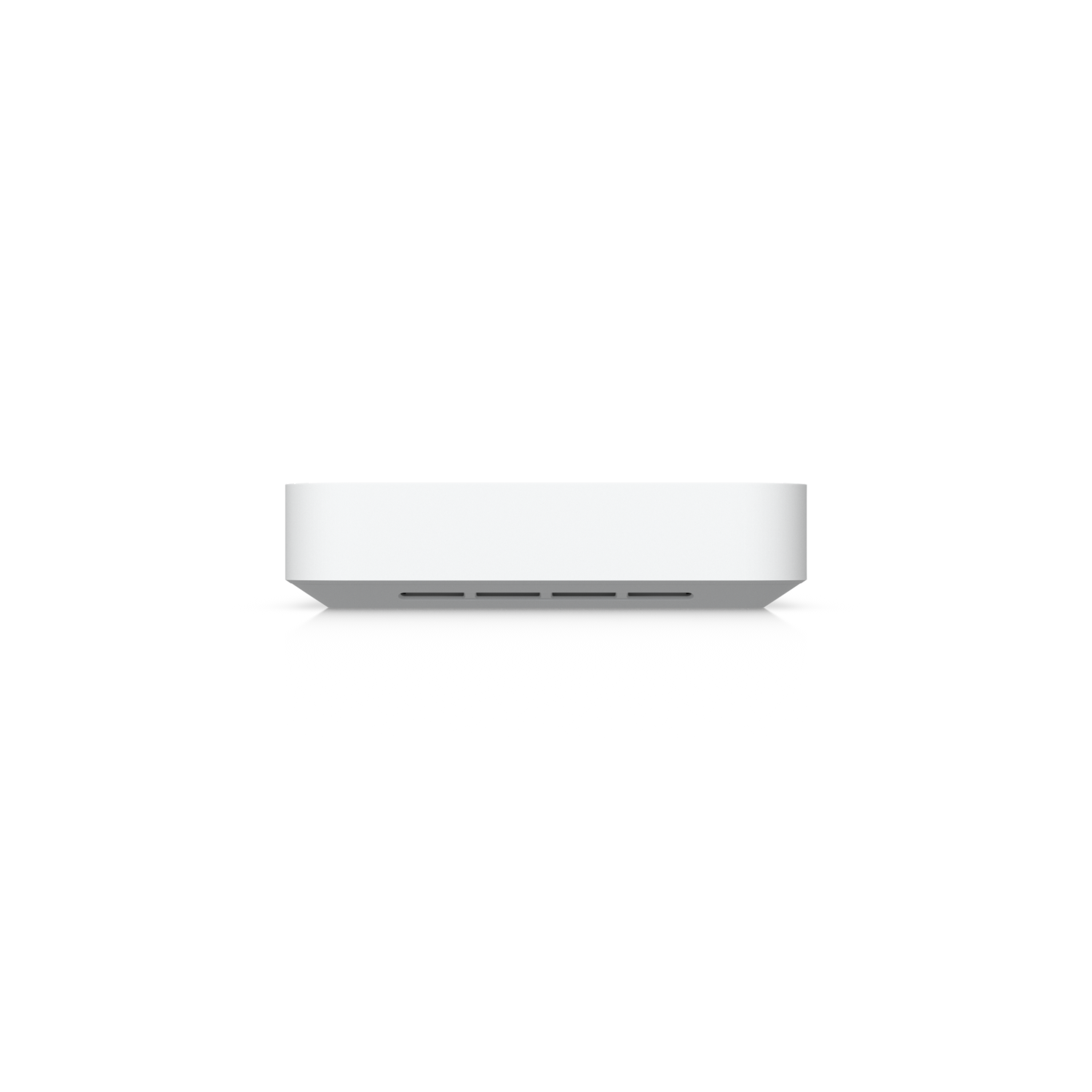

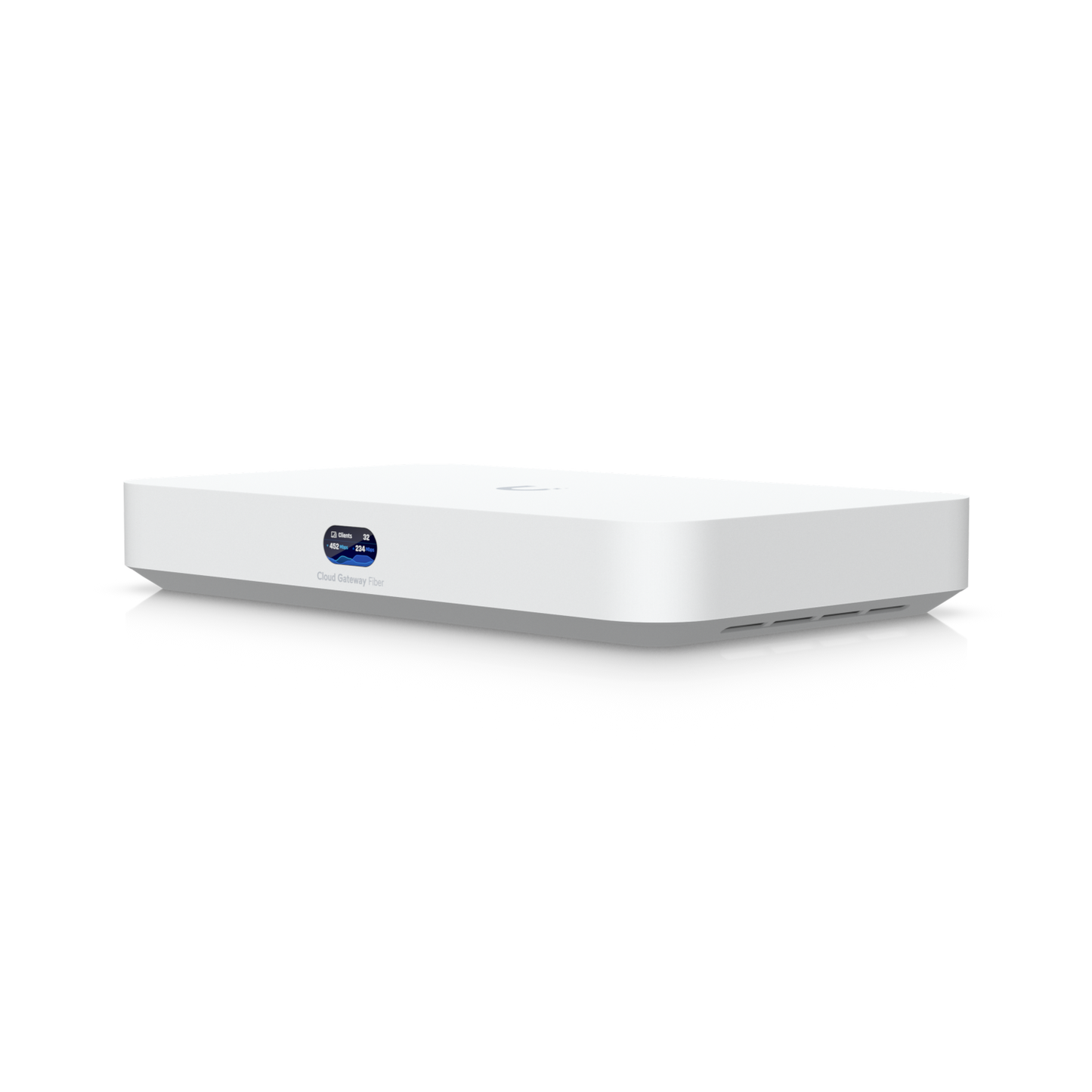

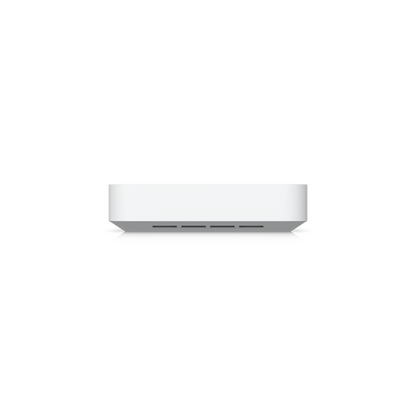

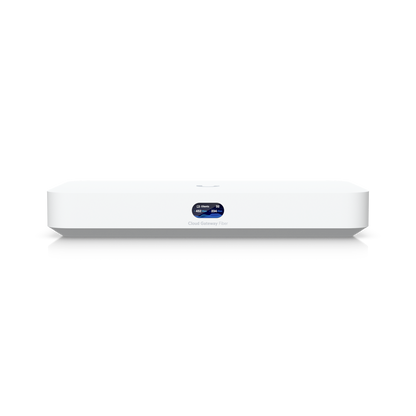

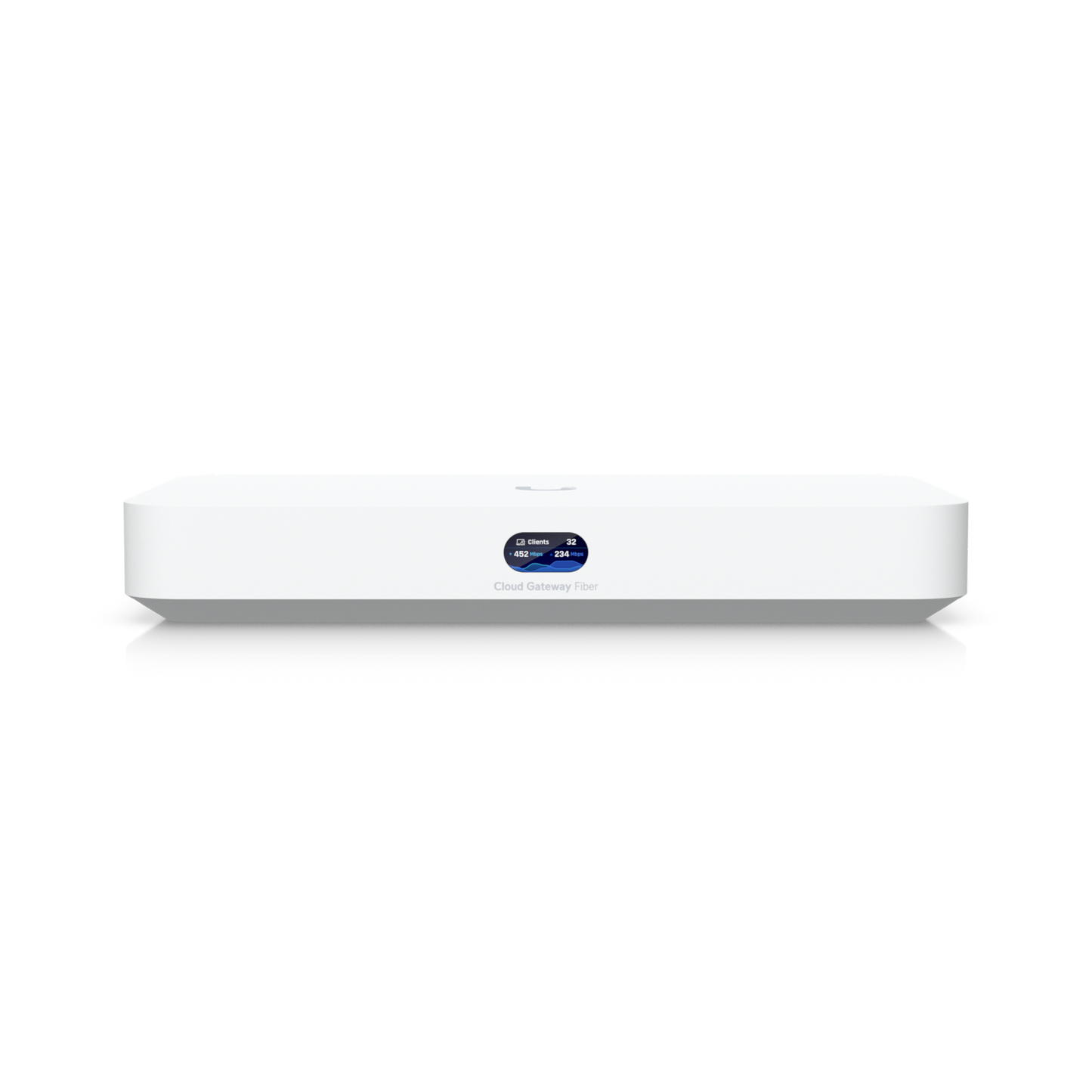

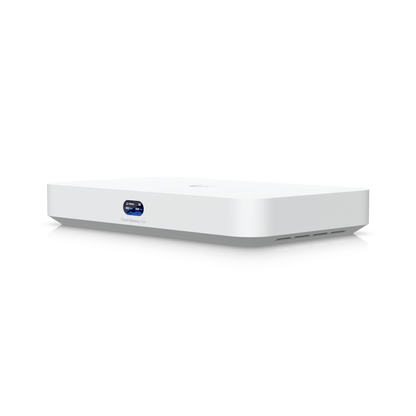

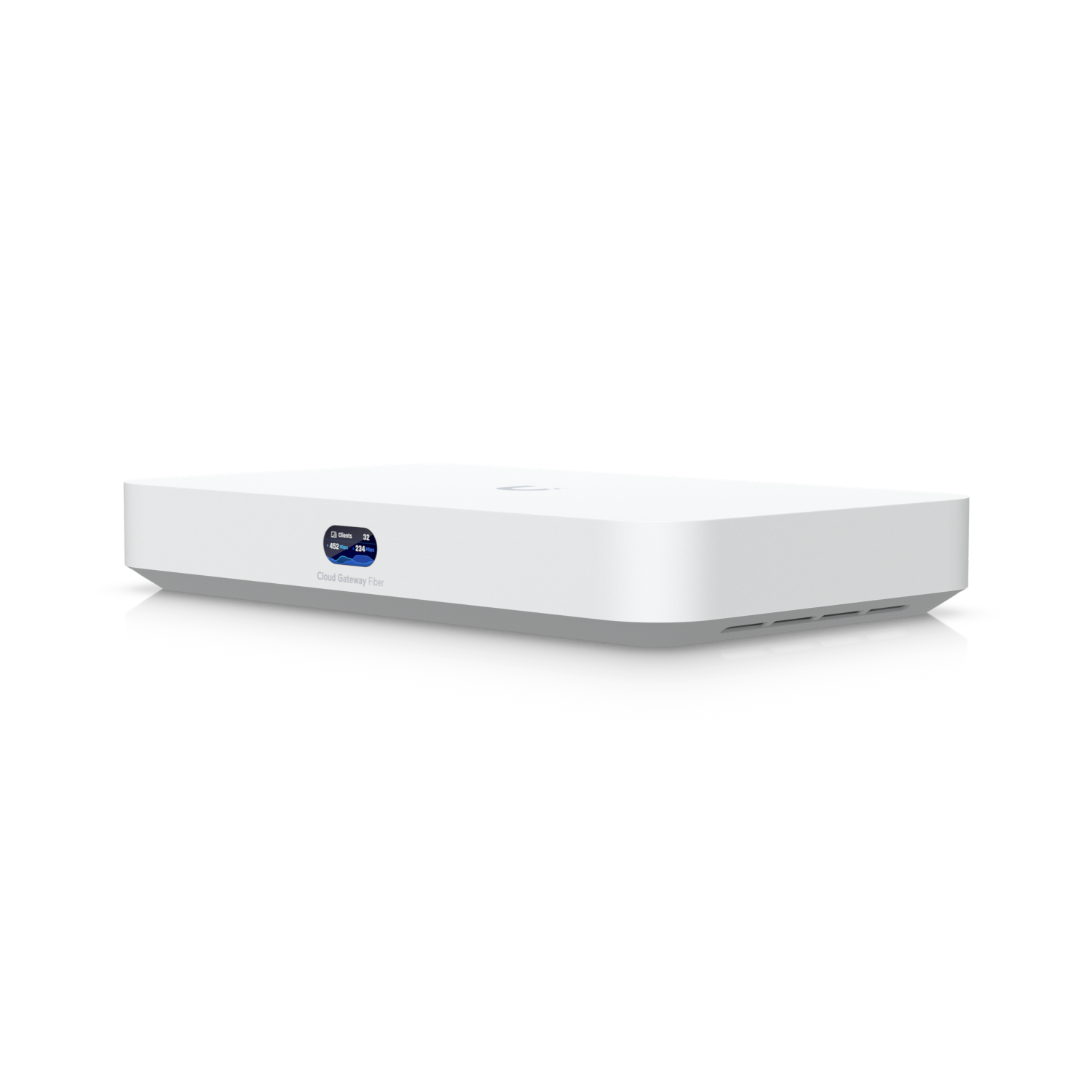

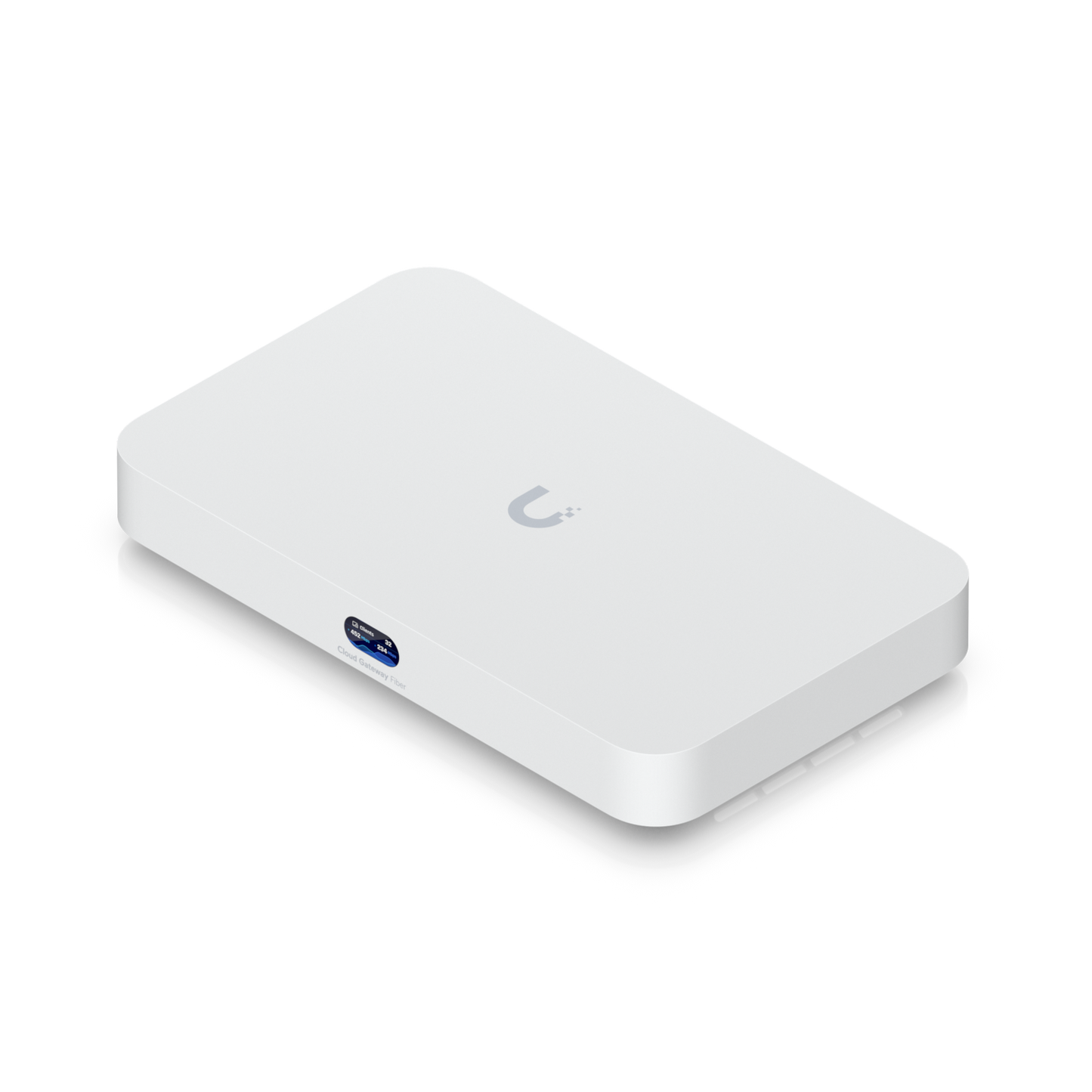

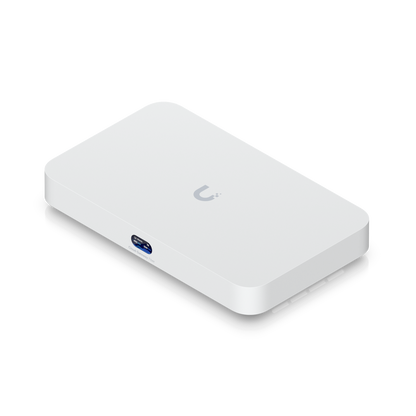

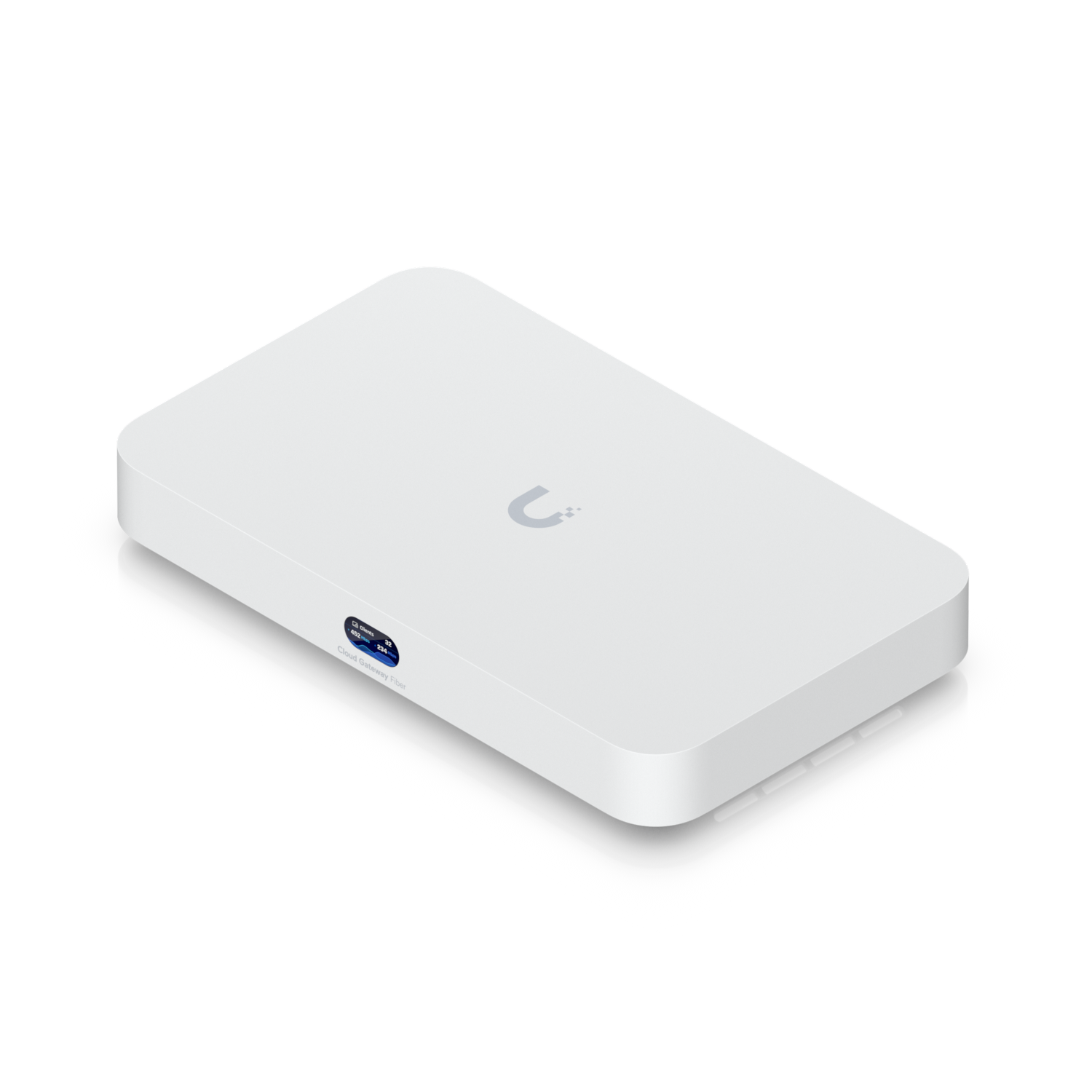

Ubiquiti Cloud Gateway Fiber

Ubiquiti Cloud Gateway Fiber

$279.00 USD
$279.00 USD
Sale Sold out

Overview

Dimensions

212.8 x 127.6 x 30 mm (8.3 x 5 x 0.5")

UniFi Application Suite

  • Network: ✓
  • Protect: ✓
  • Access: ✓
  • Talk: ✓
  • Connect: ✓

Managed UniFi Devices: 50+

Managed Cameras: (15) HD, (8) 2K, (5) 4K

Simultaneous Users Connected: 500+

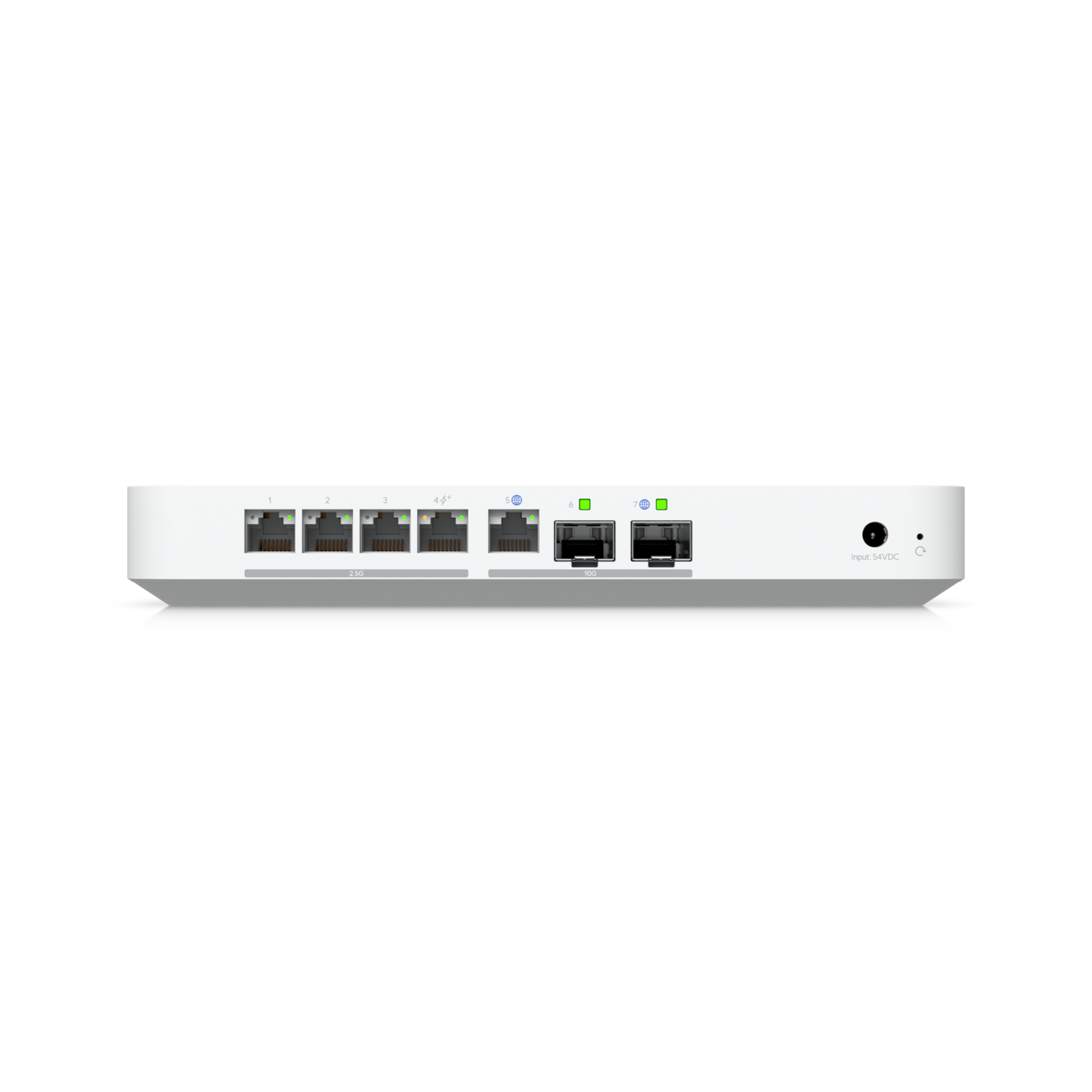

Port Configuration

  • Default WAN Ports: (1) 10G SFP+, (1) 10 GbE RJ45
  • LAN Ports: (1) 10G SFP+, (4) 2.5 GbE RJ45

IDS/IPS Throughput: 5 Gbps

Form Factor: Compact desktop

Security

  • Stateful Firewall ✓
  • Application-Aware Layer 7 Firewall ✓
  • DPI & Traffic Identification ✓
  • Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) ✓
  • Content Filtering ✓
  • Intrusion Prevention (IPS/IDS) ✓
  • Ad Blocking ✓
  • IDS/IPS Signatures: 55,000+ with CyberSecure ✓
  • VLAN/Subnet-based Traffic Segmentation ✓

VPN & SD-WAN

  • License-Free SD-WAN ✓
  • Site-to-Site VPN ✓
  • Site Magic ✓
  • IPsec ✓
  • OpenVPN ✓
  • VPN Server
  • Identity Endpoint One-Click VPN ✓
  • Teleport Zero-Configuration VPN ✓
  • WireGuard ✓
  • OpenVPN ✓
  • L2TP ✓

VPN Client

  • OpenVPN ✓
  • WireGuard ✓

Networking

  • Multi-WAN Load Balancing ✓
  • Dynamic Routing (OSPF) ✓
  • Advanced QoS ✓
  • Multicast DNS (mDNS) ✓
  • Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) ✓
  • Integrated RADIUS Server ✓
  • RADIUS over TLS (RadSec) ✓
  • Additional Internet Failover with UniFi LTE Backup ✓
  • Internet Quality and Outage Reporting ✓
  • MAC Address Table Size: 4,000

Hardware

  • NVR Storage: Selectable NVMe SSD up to 2 TB
  • PoE Budget: 30W
  • Voltage Range PoE Mode: 50-57V
  • Max. Power Consumption: 29.4W (Excluding PoE output)
  • Power Method: DC jack (54V DC/1.1A)

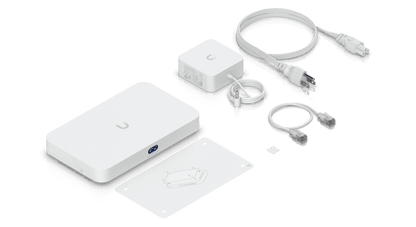

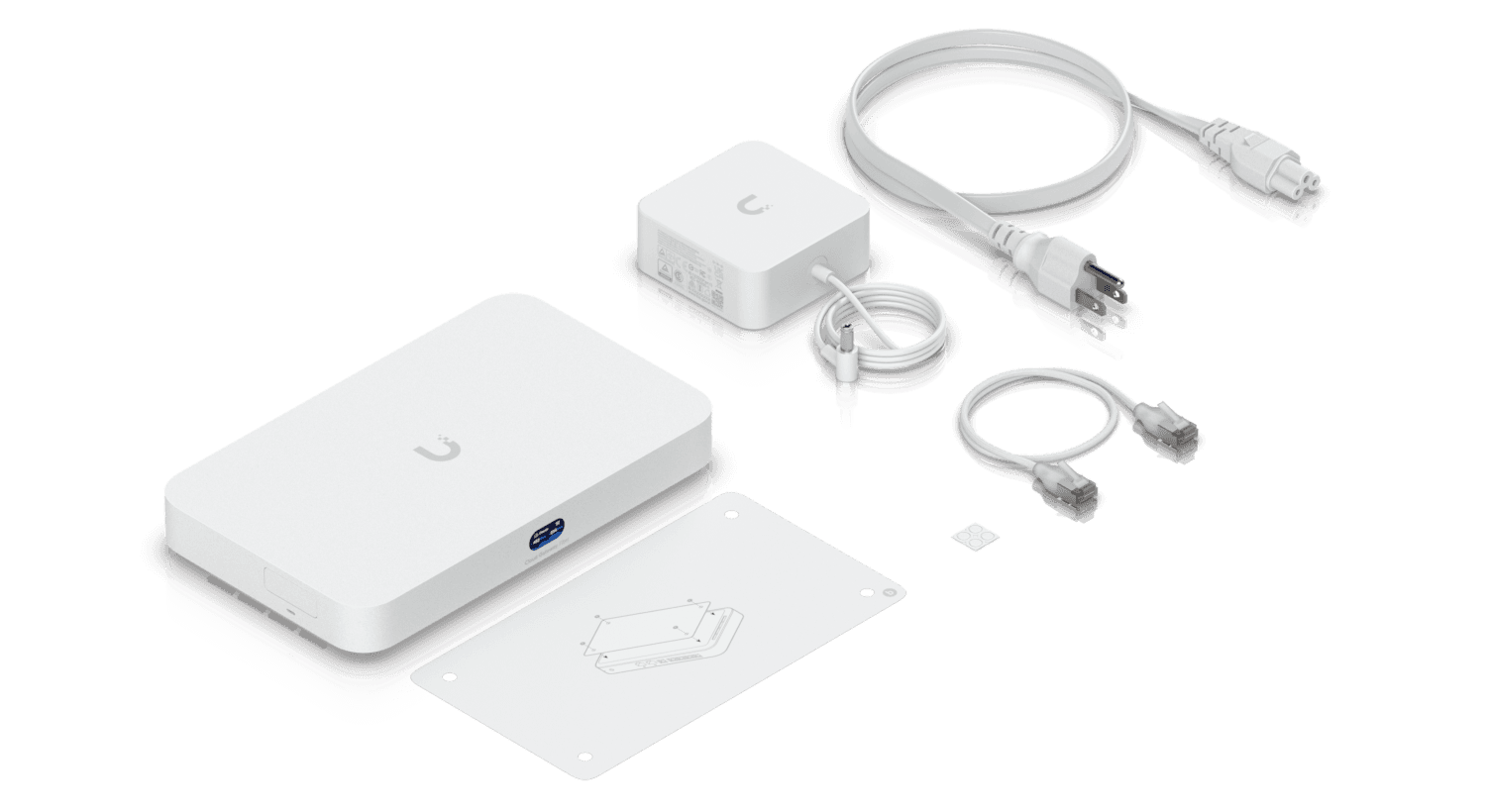

  • Power Supply: 54V DC/1.1A (adapter included)
  • Supported Voltage Range: 100-240V AC
  • Processor: Quad‑core ARM® Cortex®‑A73 at 2.2 GHz
  • System Memory: 3 GB
  • Weight: Without SSD: 675 g (1.5 lb), With SSD: 734 g (1.6 lb)
  • Enclosure Material: Polycarbonate
  • LCM Display: 0.96" status display

Management

  • Management: Ethernet, Bluetooth
  • LEDs: Ethernet ✓, SFP+ ✓, Button (1) Factory-reset
  • ESD/EMP Protection: Air: ±8kV, Contact: ±4kV
  • Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
  • Ambient Operating Humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC
  • NDAA Compliant: ✓
