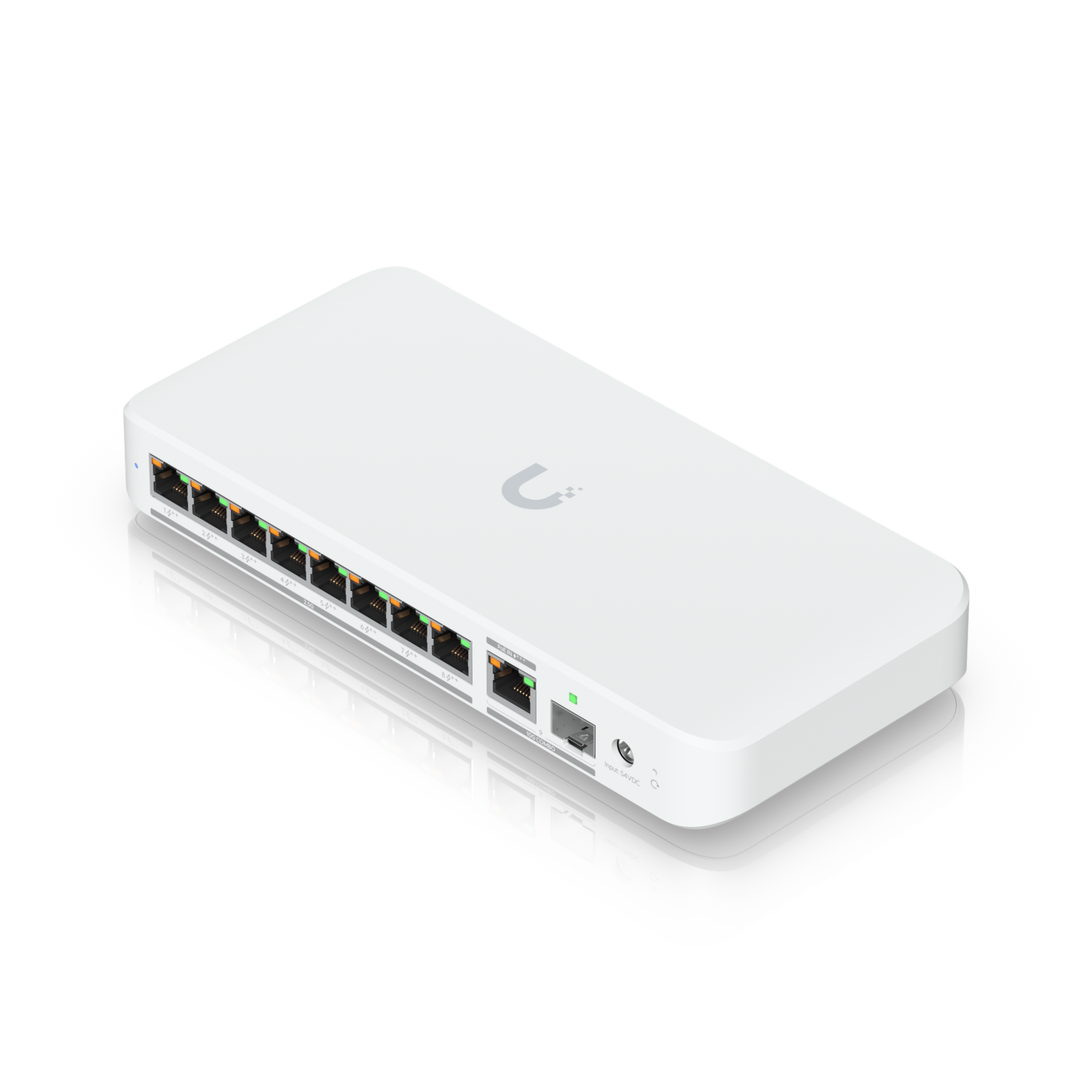

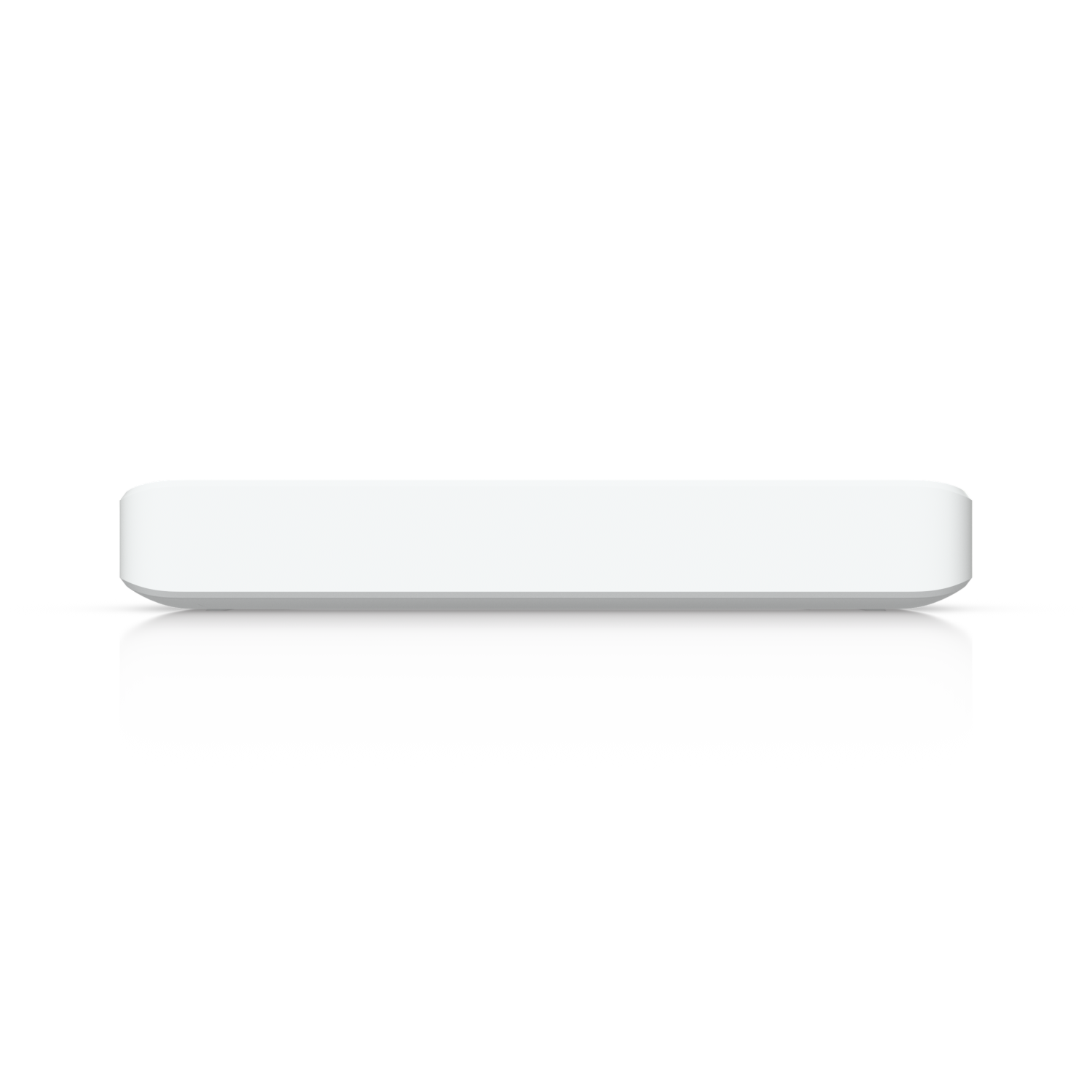

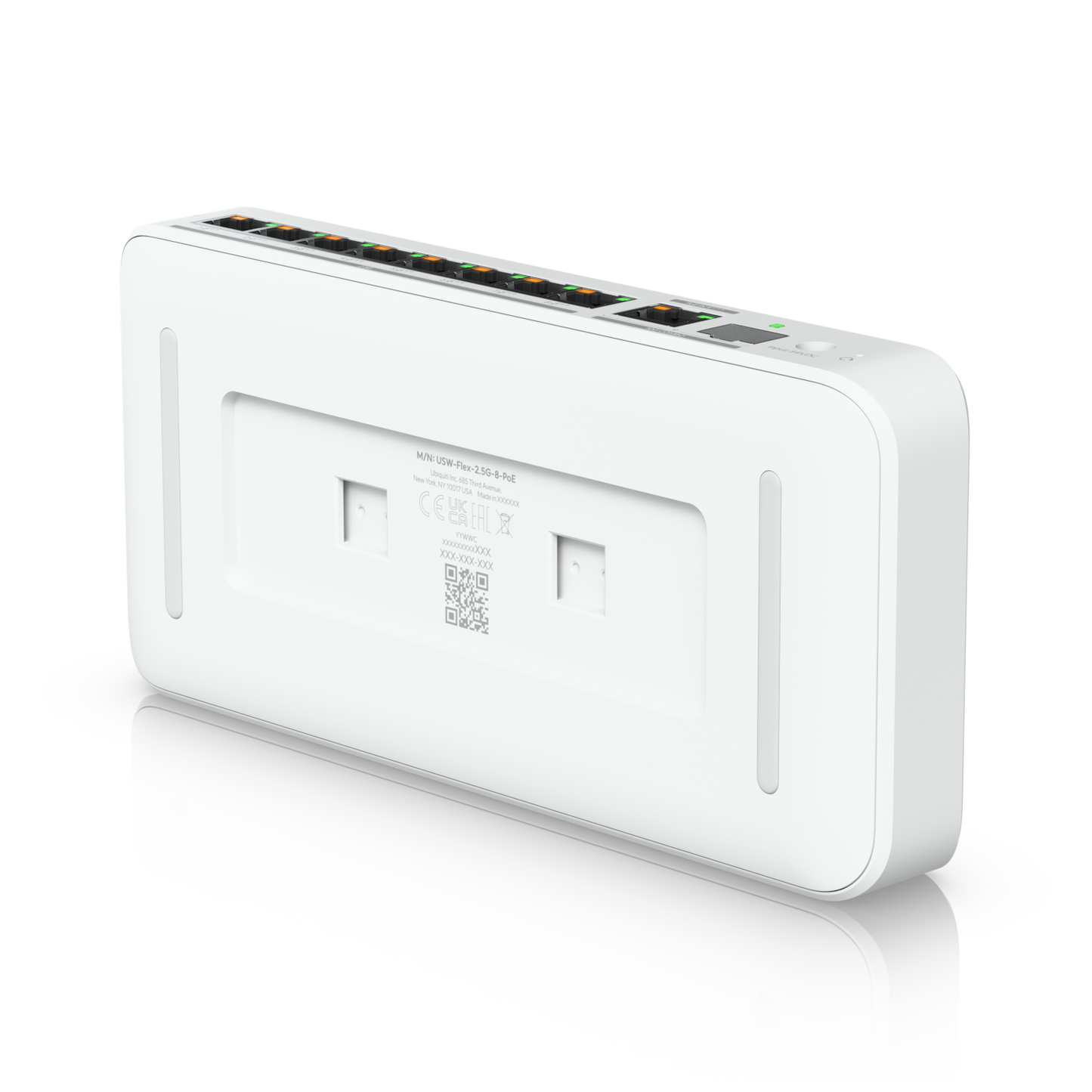

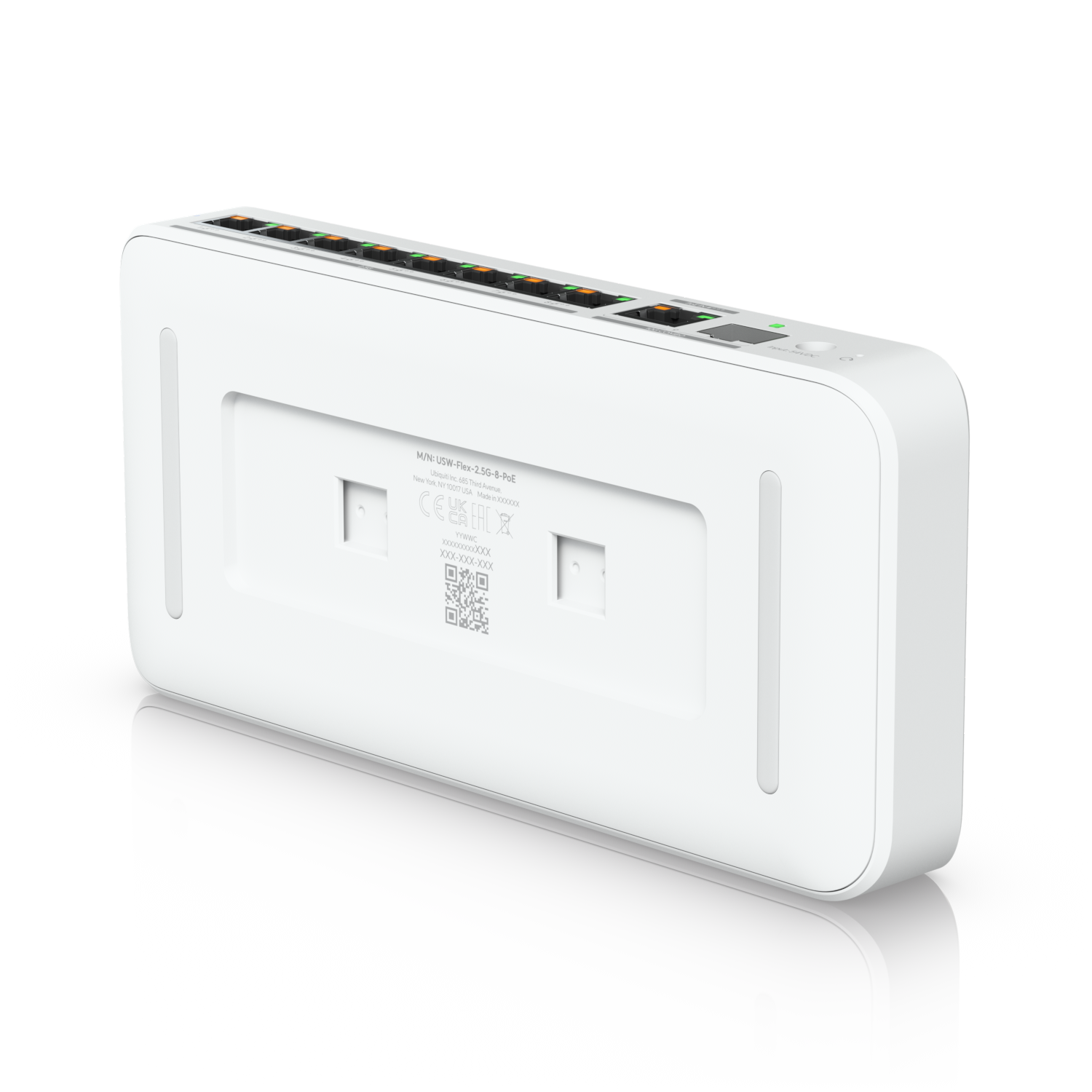

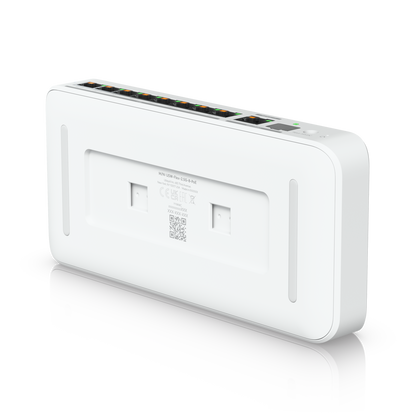

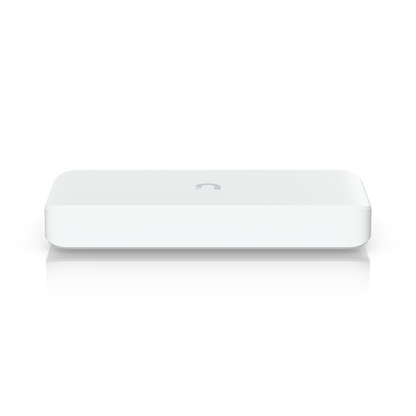

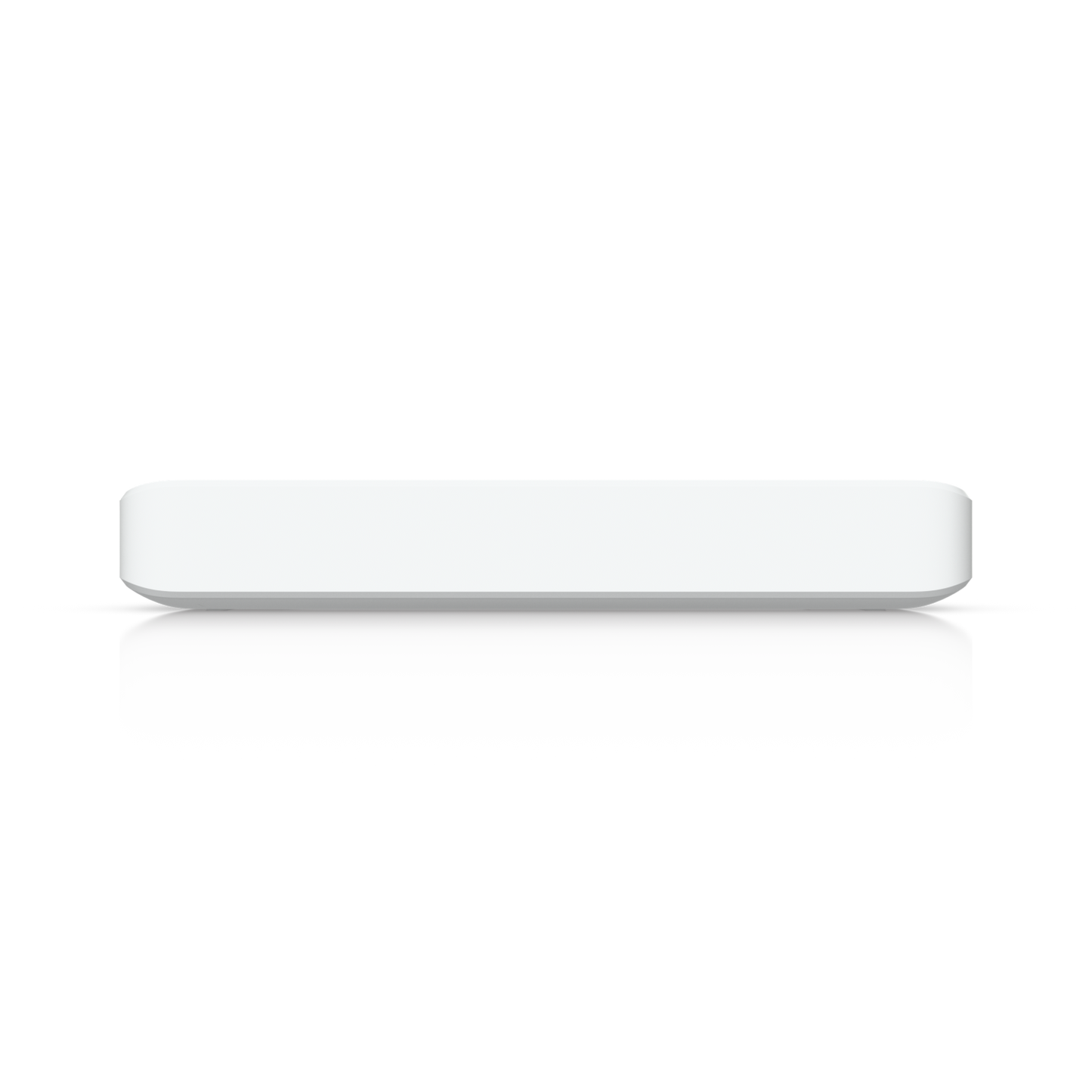

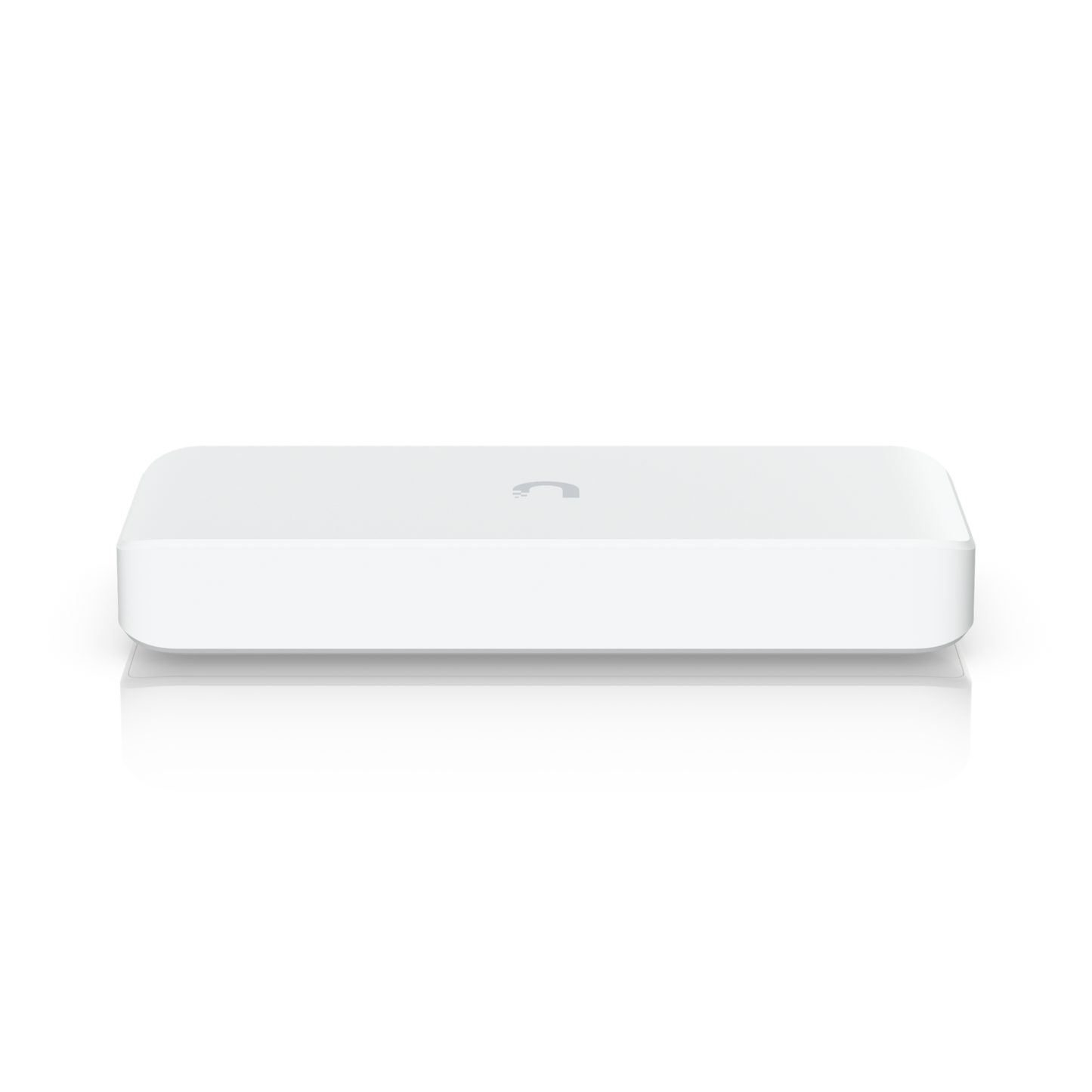

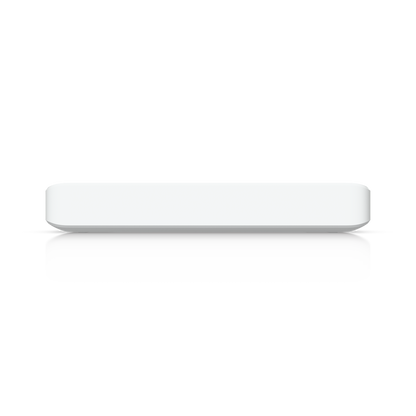

Ubiquiti Switch Flex 2.5G 8 PoE

Name: Ubiquiti Switch Flex 2.5G 8 PoE
Brand: Ubiquiti
SKU: USW-Flex-2-5G-8-PoE
Price: 269.00 USD
Availability: OutOfStock

$269.00 USD

Sale Sold out

Quantity

The latest, powerful Ubiquiti desktop-level PoE Switch, featuring:

8 2.5GbE downstream ports, all PoE++, perfect for powering the latest access points such as Pro XGS or E7
2 10G ports, one RJ45 one SFP+, for uplinking

Note that you will need to purchase a power adapter separately, e.g. the 65W one or 210W one. Alternatively, you can power the switch via PoE+++ but that limits its PoE output.

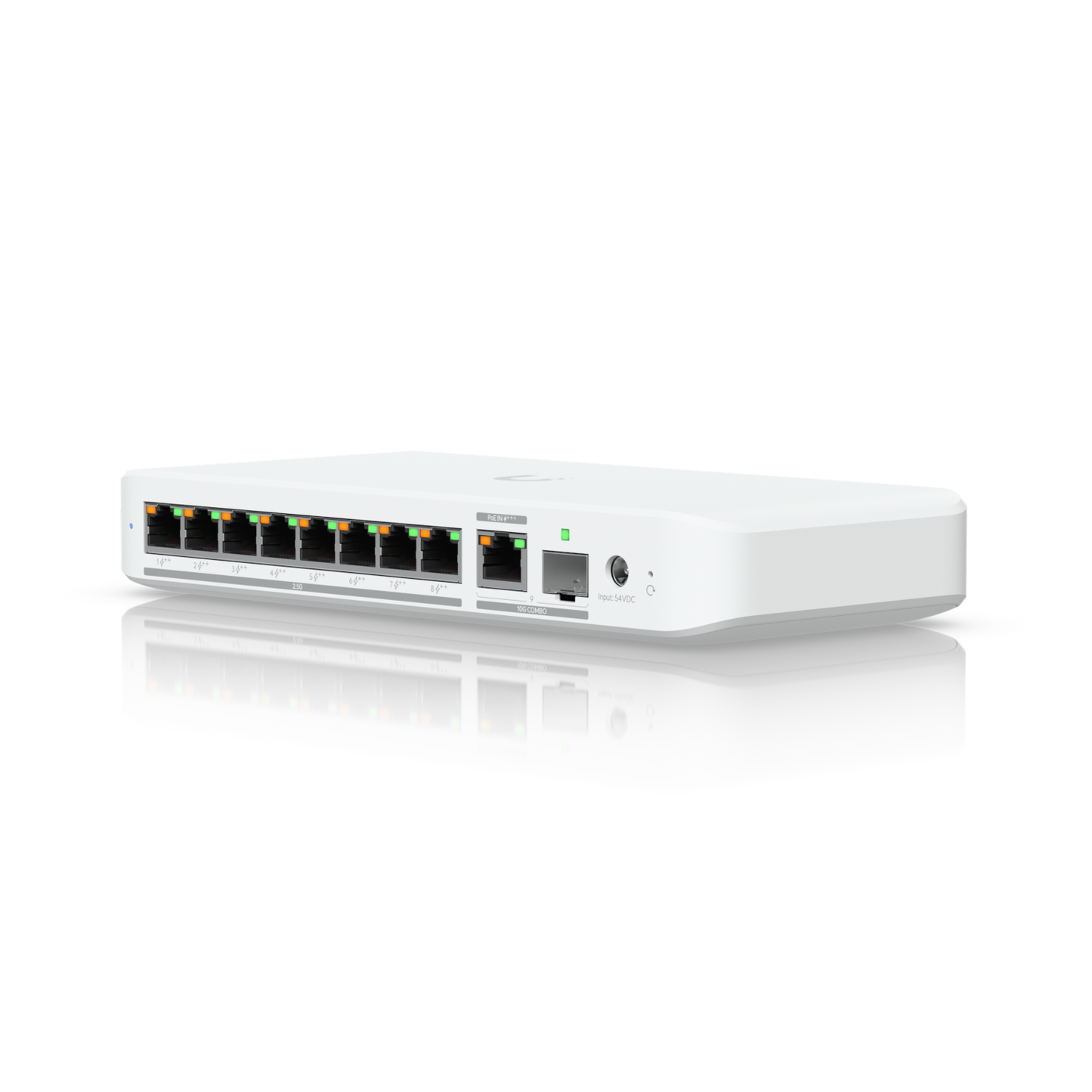

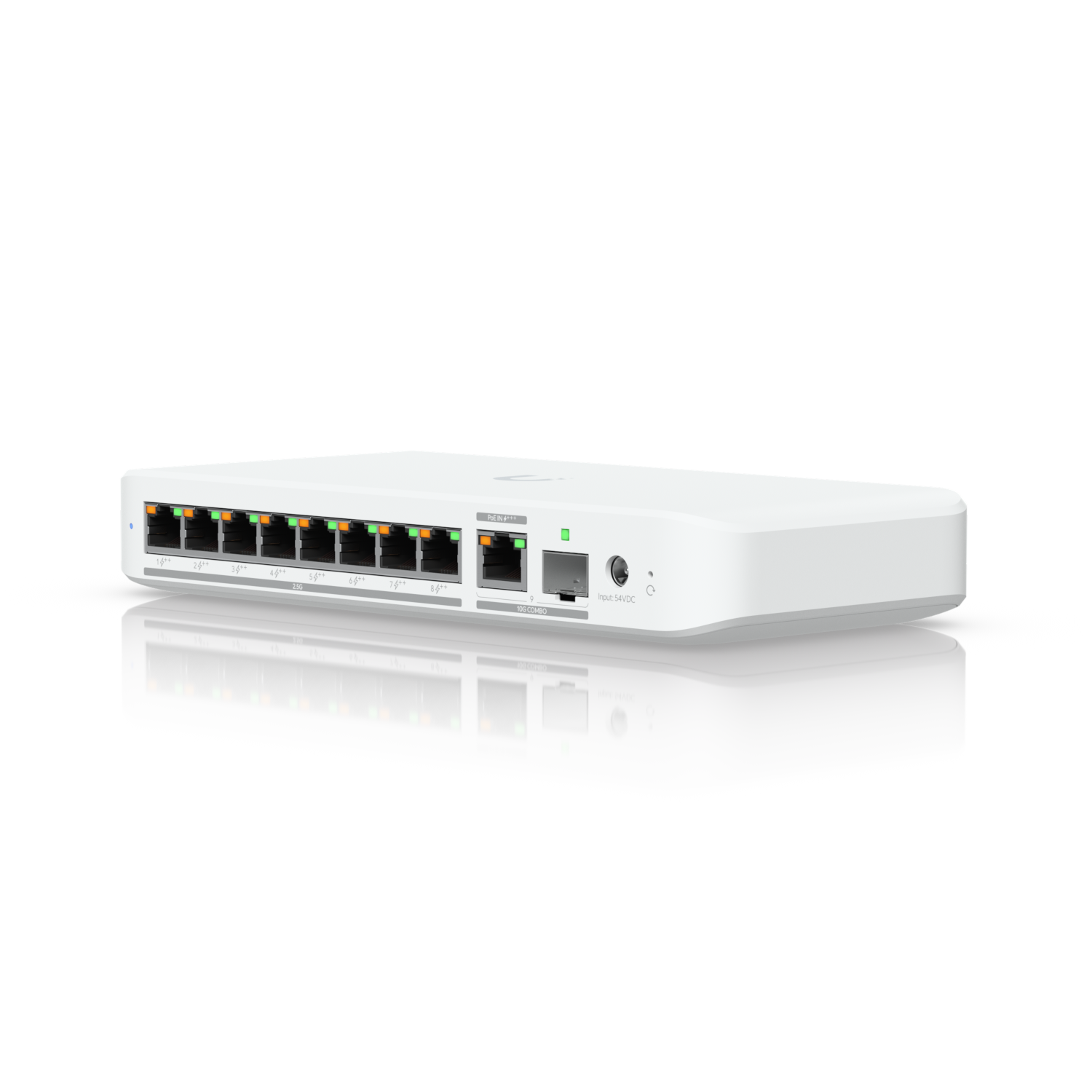

Port Layout

2.5 GbE RJ45: 8 (All PoE++)
10 GbE RJ45: 1 (PoE+++)
10G SFP+: 1

Dimensions

212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3")

Max. PoE Output

Up to PoE++

Total PoE Availability

PoE+++ input: 76W
PoE++ input: 46W
PoE+ input: 16W
AC adapter input: 196W

Form Factor

Compact Desktop, wall, DIN, magnetic

Performance

Switching Capacity: 60 Gbps
Total Non-Blocking Throughput: 30 Gbps
Forwarding Rate: 45 Mpps
Supported VLANs: 256
MAC Address Table Size: 4,000

Layer 2 Features

STP & RSTP ✓
Egress Rate Limit ✓
Flow Control ✓
Storm Control ✓
Multicast & Broadcast Rate Limiting ✓
Port Isolation ✓
Port Mirroring ✓
Jumbo Frames ✓
Loop Protection ✓

Hardware

PoE Ports: 8 (PoE++)
Max. PoE Wattage per Port: PoE: 15.4W, PoE+: 32W, PoE++: 64W
Max. Power Consumption:
14W (Excluding PoE output) with PoE input
17W (Excluding PoE output) with AC adapter input
210W (Including PoE Output)
Power Method: (1) AC/DC adapter (Excluded), (1) PoE+++
Power Input Method: DC Input PoE
Supported Voltage Range: 50—57V DC/PoE
Management: Ethernet
Weight: 567 g (20 oz)
Enclosure Material: Polycarbonate
Mount Material: Polycarbonate
Ambient Operating Temperature: -20 to 45° C (-4 to 113° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC
NDAA Compliant: ✓
